Kaye Kinder and Classroom Chairs

The Kaye Kinder Chair is designed as an adjustable seat that can be used to help ensure the user is positioned properly while sitting. These are available in the following combinations:

  • The K1 is designed as a stand-alone unit.
  • The K2 is designed to be used at standard tables.
  • K3 is available for older children.

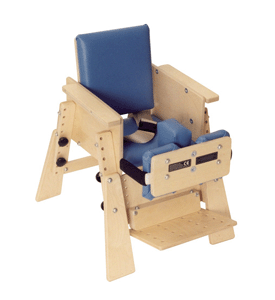

K1 Kinder Chair (shown without tray).
K1 Kinder Chair without tray but with the optional KFS Pelvic-Femoral Support.

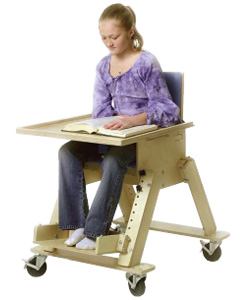

The larger K3 Kinder Chair with standard swivel, locking casters and tray adapts for children 6-12 years old.		 K2 (high) Kinder Chair and K1 (low) Kinder Chair.

Features and Specifications
Size Small High Large
Model    K1 (low chair) K2 (high chair) K3 (large chair)
Age/Size/Weight 1-7 years/ up to 48"/ 60 lb. (27 kg.) Same as Small 6-12 years/ up to 56 "/ 100 lb. (45 kg.)
Seat depth Adjust 7"-12" Same as Small Adjust 11"-16"
Seat width 11" Same as Small 14"
Back angle Reclines 10° from vertical Same as Small Same as Small
Footrest Adjusts 3" to 10½" below seat Same as Small Adjusts 9 " to 17½" below seat)
Abductor Removable, 2" wide Same as Small Same as Small
Height of arms 5¼" above seat Same as Small 5½" above seat
Height of back 13" above seat Same as Small 14" above seat
Chair height - floor to top of arms Adjusts 14¾" to 22" Adjusts 26" to 28½" Adjusts 24" to 29"
Tray dimensions 25" wide x 19¾" deep Tray is optional.
To order with the tray, specify model K2+T		 25" wide x 23½" deep
Optional Caster Base Model K1CB, includes 4", swivel, locking casters. Model K2CB, includes 4", swivel, locking casters. Standard. swivel, locking casters.
Optional Footrest Extension Model KCFRE, increases distance from footrest to seat 7". Model KCFRE, increases distance from footrest to seat 7". n/a
Optional Pelvic-femoral stabilizer Model KFS, 1 ea.
4" x 6" knee pads.		 Model KFS, 1 ea.
4" x 6" knee pads.		 n/a

Accessories

    Pelvic-Femoral Support:
  • Model KFS.
  • Shown in the top most image.
  • Fits any Kinder Chair.
  • Provides additional stability and alignment for the user's pelvis, legs, and lower body.
    Caster Base:
  • Model K1CB for the K1.
  • Model K2CB for the K2 or K2+T.
  • K2CB is shown in the lower most image.
  • 4", locking, swivel casters.
  • Includes replacement legs to attach the caster base.
  • Will not alter the chair height.
    Footrest Extension:
  • Model KCFRE.
  • Fits any Kinder Chair.
  • Adds 7" to the distance between the footrest and the seat.

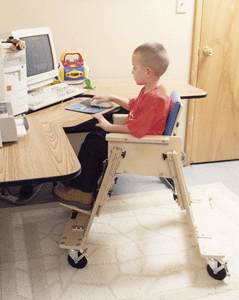

 K2 chair with K2CB Caster Base.
K2 with optional K2CB
